Concrete wall cladding

Four families, one finish

Cast concrete panels for walls. Relief, interlocking and engraved, in four families that look nothing like each other.

Roman 3D Impressions is the largest, seven patterns in eleven sizes, from a four inch Wedge up to the eighteen inch panels. Floways is three organic shapes that flow together. M3LD is three relief panels, all twenty inches square. The Echo Series is flat and engraved, and the only one of the four that goes underfoot as well as on the wall.

Hand cast in our Gardena facility from durable, fiber reinforced concrete. Every one of the four is made in solid concrete colors, and every one of them comes in a single finish.

3D Impressions, Ring Fish, Early Gray

Roman 3D Impressions

Seven patterns, eleven sizes

3D Concrete Impressions add dimensionality to your verticality.

Six of the seven come in a large panel and a small one, so a pattern can run a whole elevation or pick out a single band of it. The drawings show the pattern. The sizes are in the tables.

Drawing of the Compton wall panel pattern

Compton

16x16

Nominal size
15 5/8 by 15 5/8 inches
Pieces per sq ft
0.56
Weight per piece
14 lb
Packaging
75 per crate

6x6

Nominal size
5 3/4 by 5 3/4 inches
Pieces per sq ft
4
Weight per piece
1.9 lb
Packaging
12 per box, 45 boxes per pallet
Drawing of the Buckle wall panel pattern

Buckle

18x18

Nominal size
17 3/4 by 17 3/4 inches
Pieces per sq ft
0.445
Weight per piece
16.5 lb
Packaging
75 per crate

6x6

Nominal size
6 5/8 by 6 5/8 inches
Pieces per sq ft
4
Weight per piece
2.4 lb
Packaging
9 per box, 45 boxes per pallet
Drawing of the Compass Star wall panel pattern

Compass Star

18x18

Nominal size
17 3/4 by 17 3/4 inches
Pieces per sq ft
0.445
Weight per piece
16.4 lb
Packaging
75 per crate

6x6

Nominal size
6 5/8 by 6 5/8 inches
Pieces per sq ft
4
Weight per piece
2.3 lb
Packaging
9 per box, 45 boxes per pallet
Drawing of the Corona wall panel pattern

Corona

18x18

Nominal size
17 3/4 by 17 3/4 inches
Pieces per sq ft
0.445
Weight per piece
18 lb
Packaging
40 per crate

7x7

Nominal size
6 3/4 by 6 3/4 inches
Pieces per sq ft
2.4
Weight per piece
3 lb
Packaging
8 per box, 45 boxes per pallet
Drawing of the Target Tile wall panel pattern

Target Tile

16x16

Nominal size
15 5/8 by 15 5/8 inches
Pieces per sq ft
0.56
Weight per piece
15.1 lb
Packaging
75 per crate
Drawing of the Ring Fish wall panel pattern

Ring Fish

Nominal size
13 1/2 by 20 inches
Pieces per sq ft
0.75
Weight per piece
15 lb
Packaging
50 per crate
Drawing of the Wedge wall panel pattern

Wedge

4x4

Nominal size
4 by 4 inches
Pieces per sq ft
9
Weight per piece
2 lb

Order a sample of any pattern before you specify it.

Floways, Old California, Hacienda, Bone, Rice and Early Gray

Floways

Three shapes, that flow together

Interlocking shapes for walls, three quarters of an inch thick.

Three organic shapes that flow together, sold as a set or as single models. Nothing in the family is square, so a Floways wall has no grid in it and no run of aligned joints.

Drawing of the Floways three piece set, the shapes assembled

The Three Piece Set

Coverage
One set per square foot
Weight per set
8.1 lb
Packaging
15 pieces per box, 30 boxes per pallet
Thickness
3/4 inch

Assembled, the set sits inside a bounding square of about fifteen and five eighths inches. That is larger than the ground it covers, because none of the three shapes is a rectangle. The coverage figure above is the one to order from.

The Three Models

  • Drawing of Floways Model 1 Model 1
  • Drawing of Floways Model 2 Model 2
  • Drawing of Floways Model 3 Model 3
Nominal size
7 by 7 inches
Pieces per sq ft
3
Weight per piece
2.7 lb
Packaging
15 pieces per box, 30 boxes per pallet

All three share a size, a coverage, a weight and a packaging. Only the shape is different.

M3LD Brute, Early Gray

M3LD

Three panels, one format

Relief wall panels, all twenty inches square, in the deepest section on this page.

Nominal size
20 by 20 inches
Pieces per sq ft
0.375
Thickness
1 to 1 1/2 inches
  • Drawing of the M3LD Brute A relief panel

    Brute A

    Weight per piece
    23 lb
    Packaging
    42 per crate
  • Drawing of the M3LD Brute B relief panel

    Brute B

    Weight per piece
    23 lb
    Packaging
    42 per crate
  • Drawing of the M3LD Bruin relief panel

    Bruin

    Weight per piece
    20 lb
    Packaging
    46 per crate

The three share their size, their coverage and their thickness, so those are given once above. Only weight and packaging differ, and only on Bruin.

Echo Series, Charcoal

Echo Series

Flat and engraved, walls or floors

A flat engraved surface with square edges and corners, one inch thick.

Echo is the one family here that is not only for walls. It is the same engraved pattern in four sizes, and it reads differently on a twenty four inch tile than on an eight inch one.

Thickness
1 inch
Surface
Flat, engraved, square edged
Use
Walls and floors
  • Drawing of the Echo 8x8 engraved tile

    8x8

    Nominal size
    8 by 8 inches
    Pieces per sq ft
    2.25
    Weight per piece
    4.7 lb
    Packaging
    10 per box, 45 boxes per pallet
  • Drawing of the Echo 8x16 engraved tile

    8x16

    Nominal size
    8 by 16 inches
    Pieces per sq ft
    1.12
    Weight per piece
    9.4 lb
    Packaging
    180 per crate
  • Drawing of the Echo 16x16 engraved tile

    16x16

    Nominal size
    16 by 16 inches
    Pieces per sq ft
    0.565
    Weight per piece
    18.6 lb
    Packaging
    95 per crate
  • Drawing of the Echo 16x24 engraved tile

    16x24

    Nominal size
    16 by 24 inches
    Pieces per sq ft
    0.37
    Weight per piece
    28.4 lb
    Packaging
    90 per crate

The four are the same tile at four sizes, so reading them as a range is more useful than reading them as a list.

Installed

On the wall, and in the room

Interiors and exteriors, across the four families.

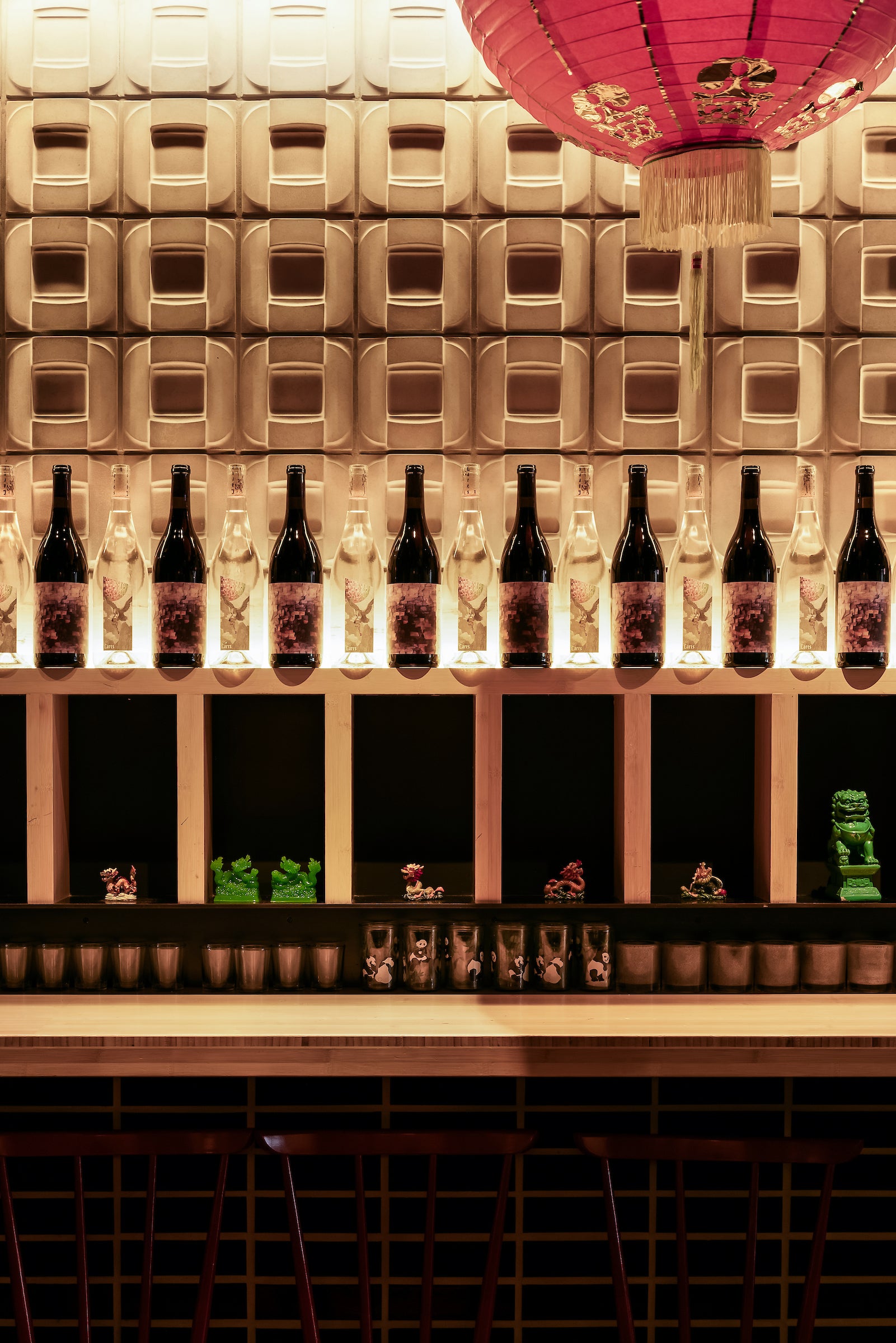

  • Buckle 6x6, Early Gray

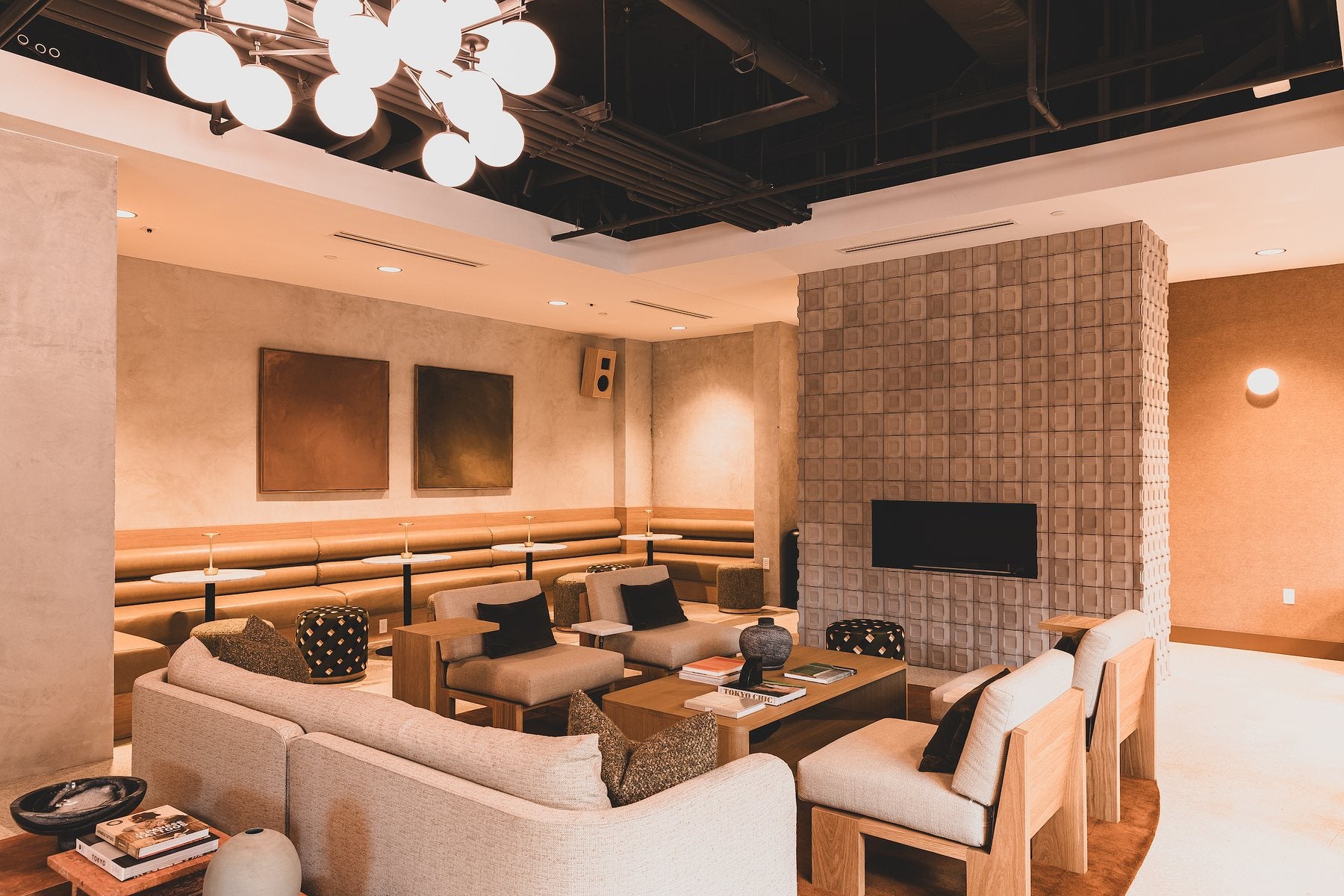

  • Buckle 6x6, Natural Gray

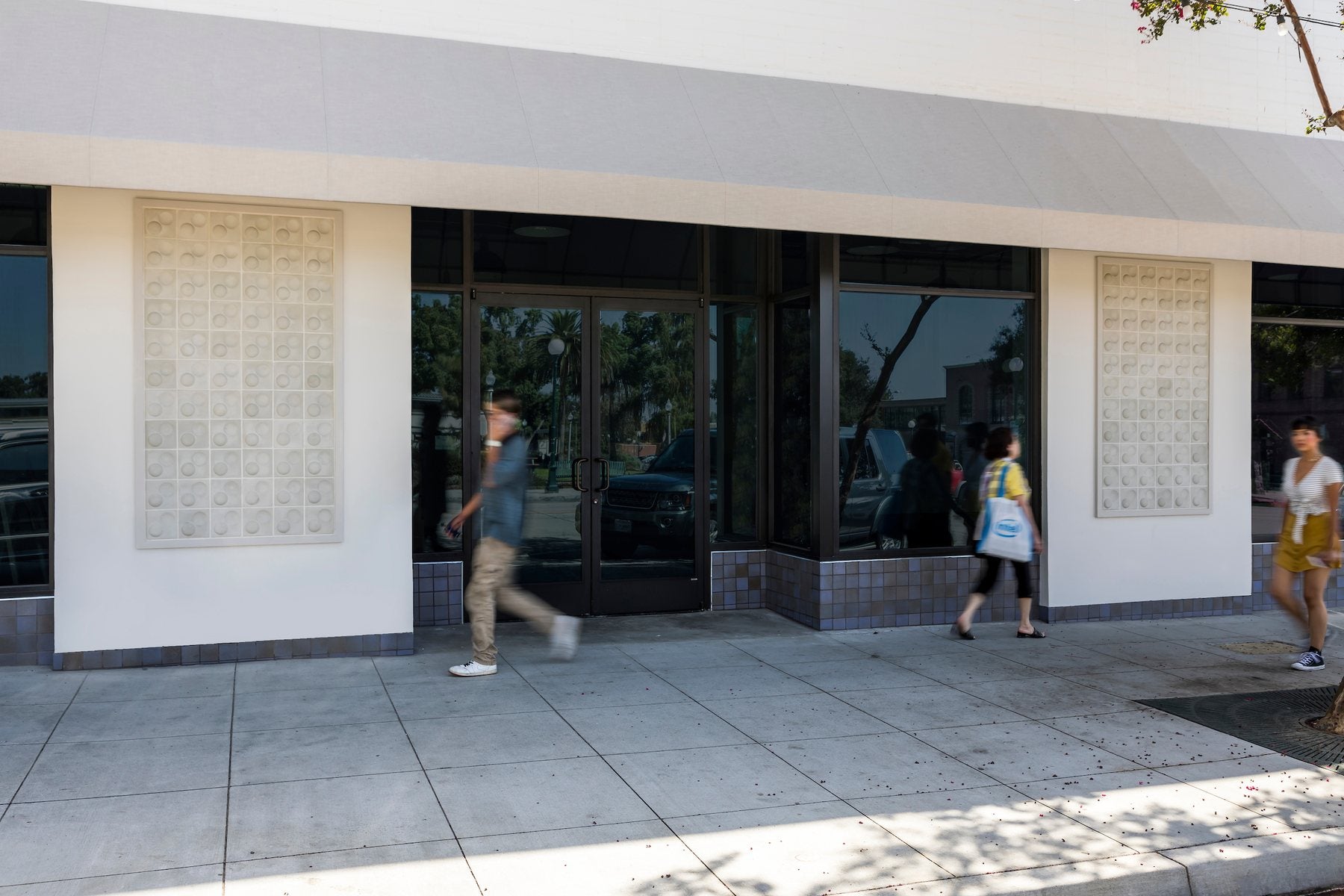

  • Corona 7x7, Early Gray

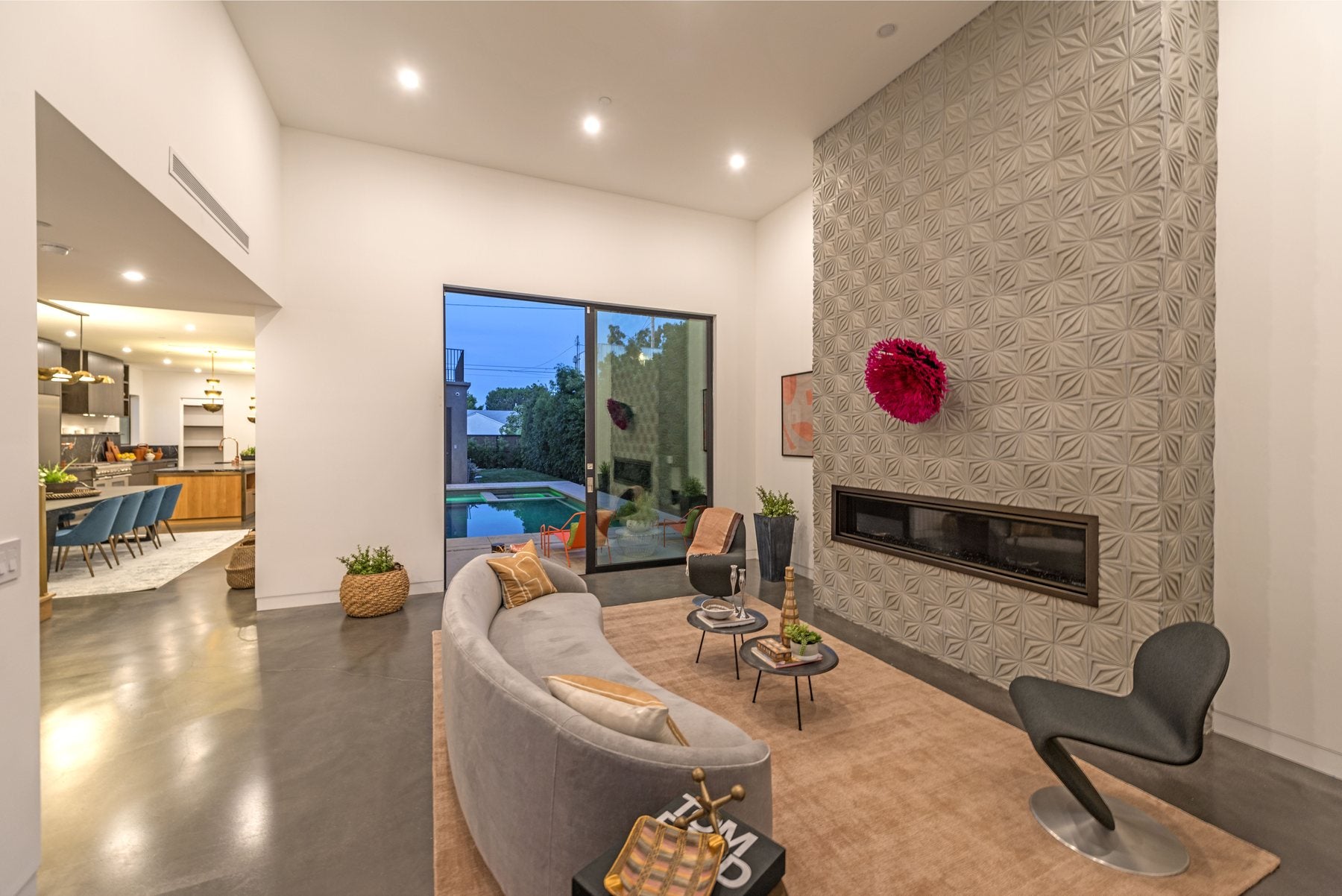

  • Compass Star, Early Gray

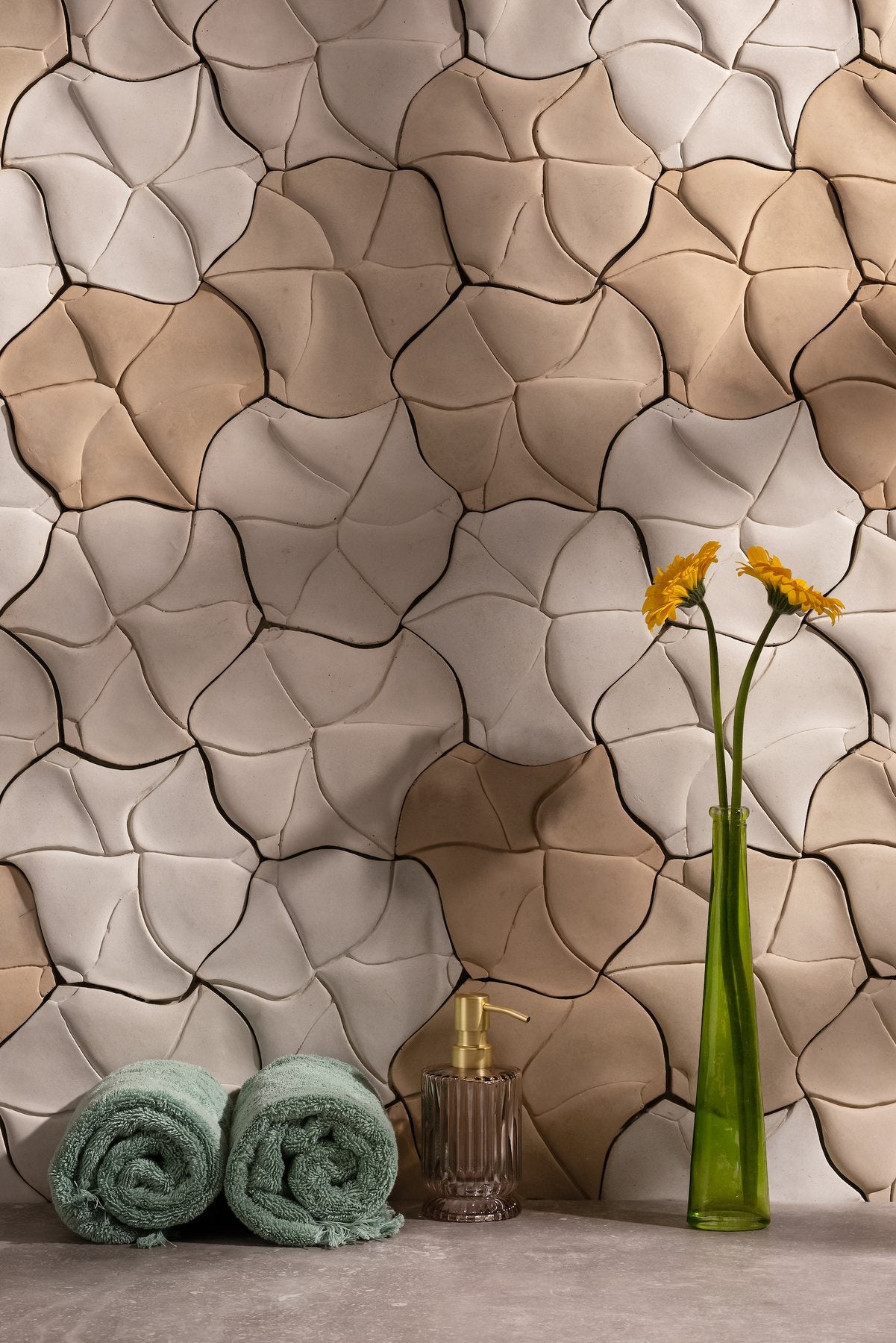

  • Floways, Old California, Hacienda, Bone, Rice and Early Gray

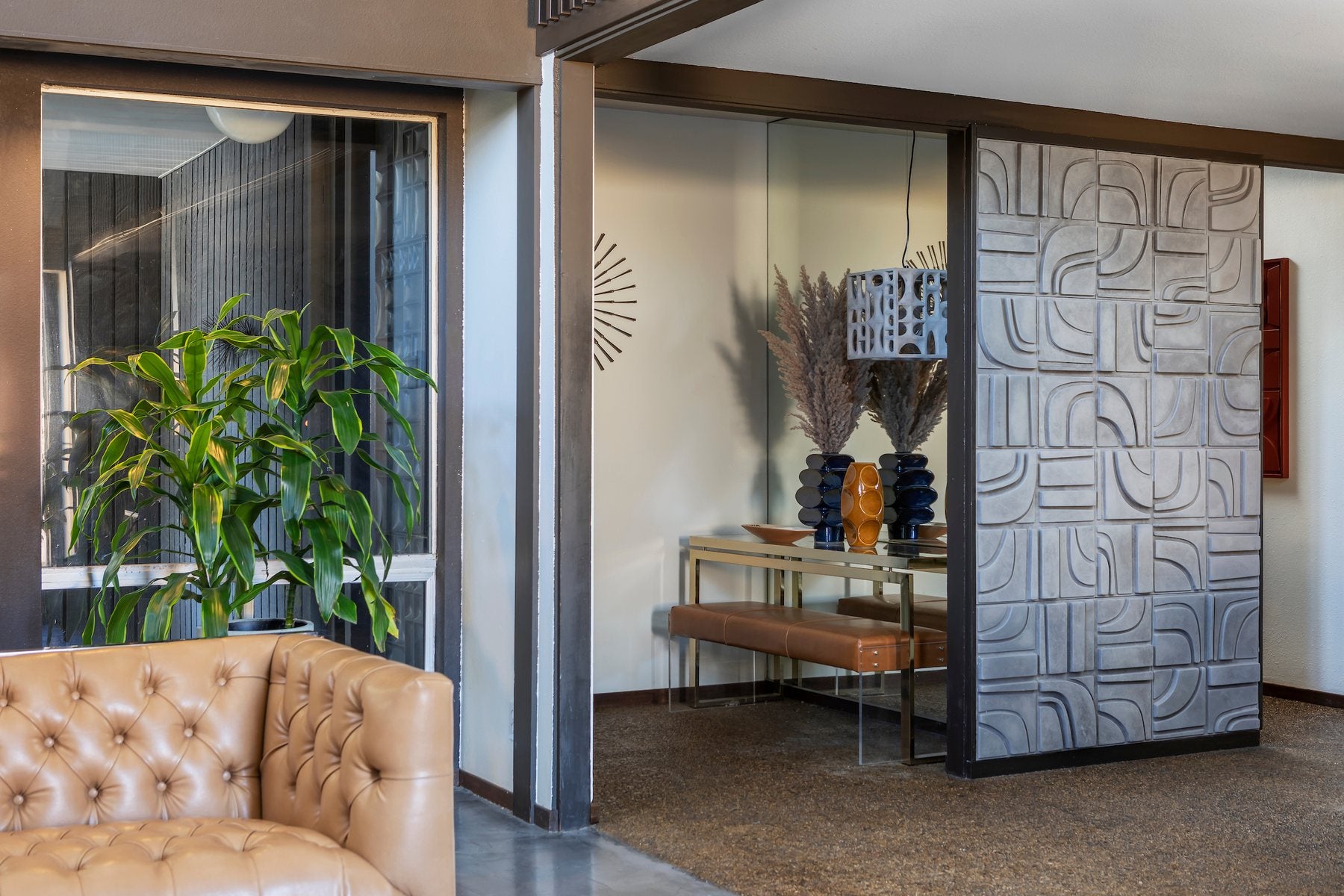

  • M3LD Brute, Sidewalk Gray

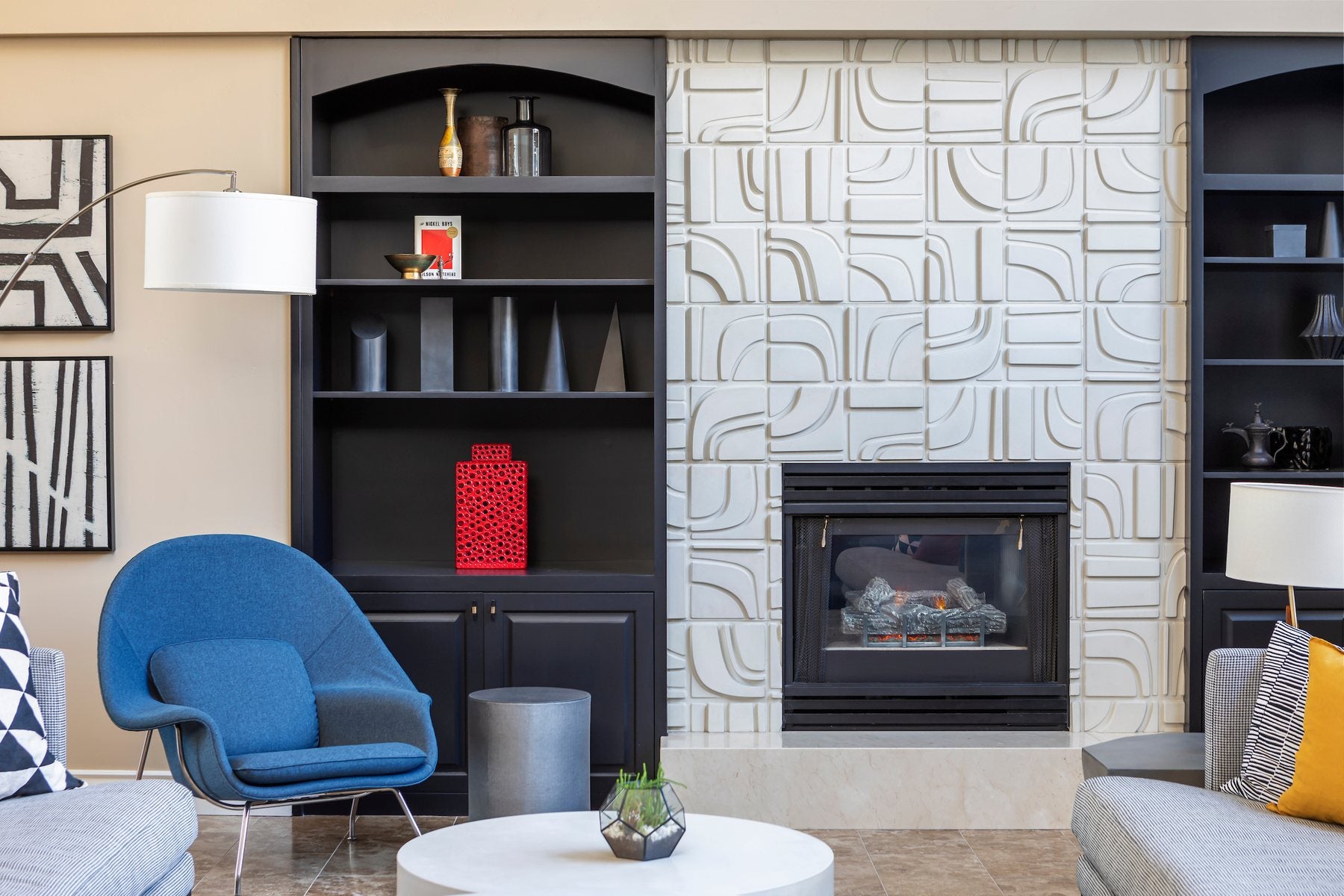

  • M3LD Brute, Early Gray

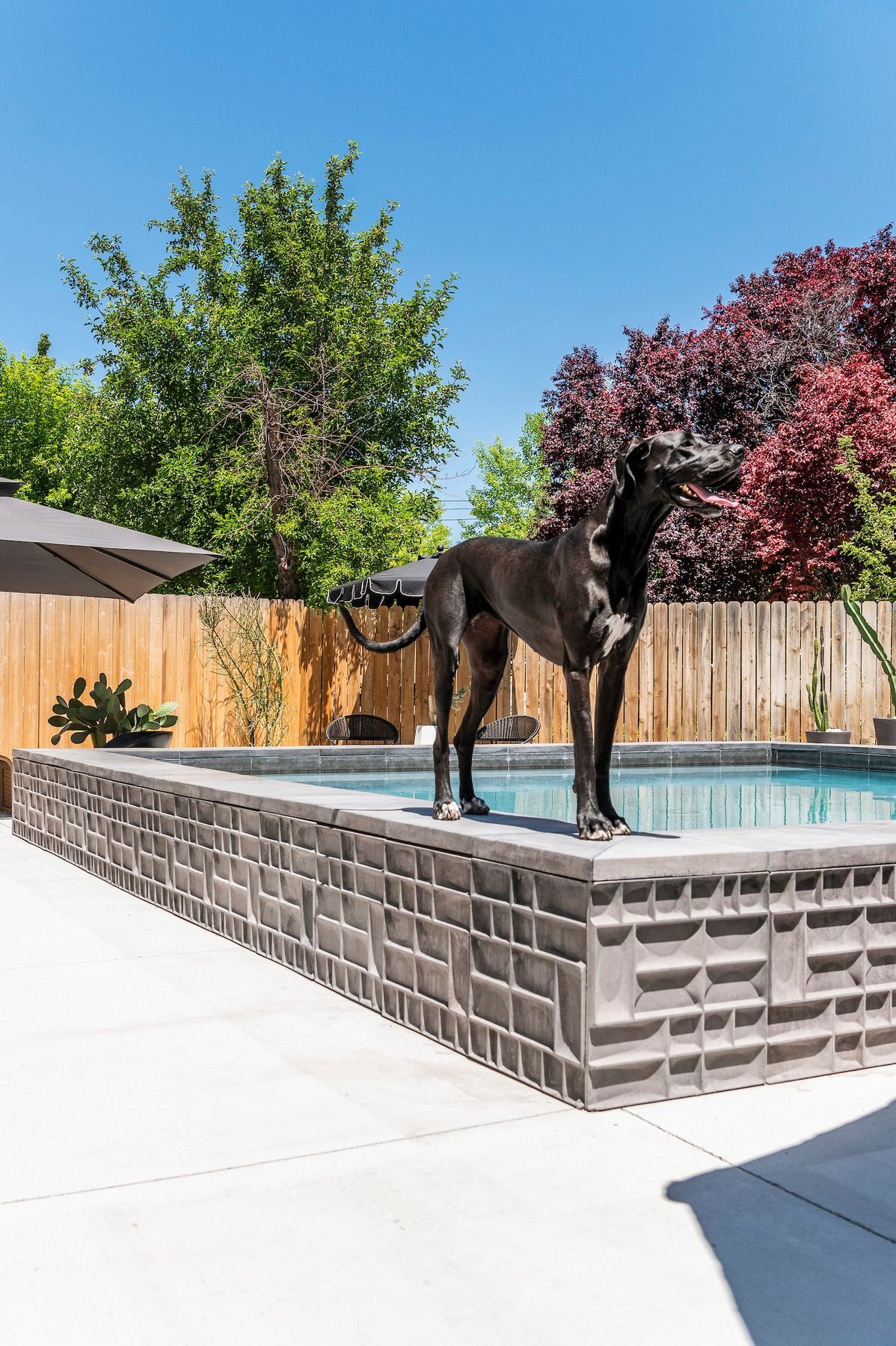

  • M3LD Bruin, 20 by 20, Natural Gray

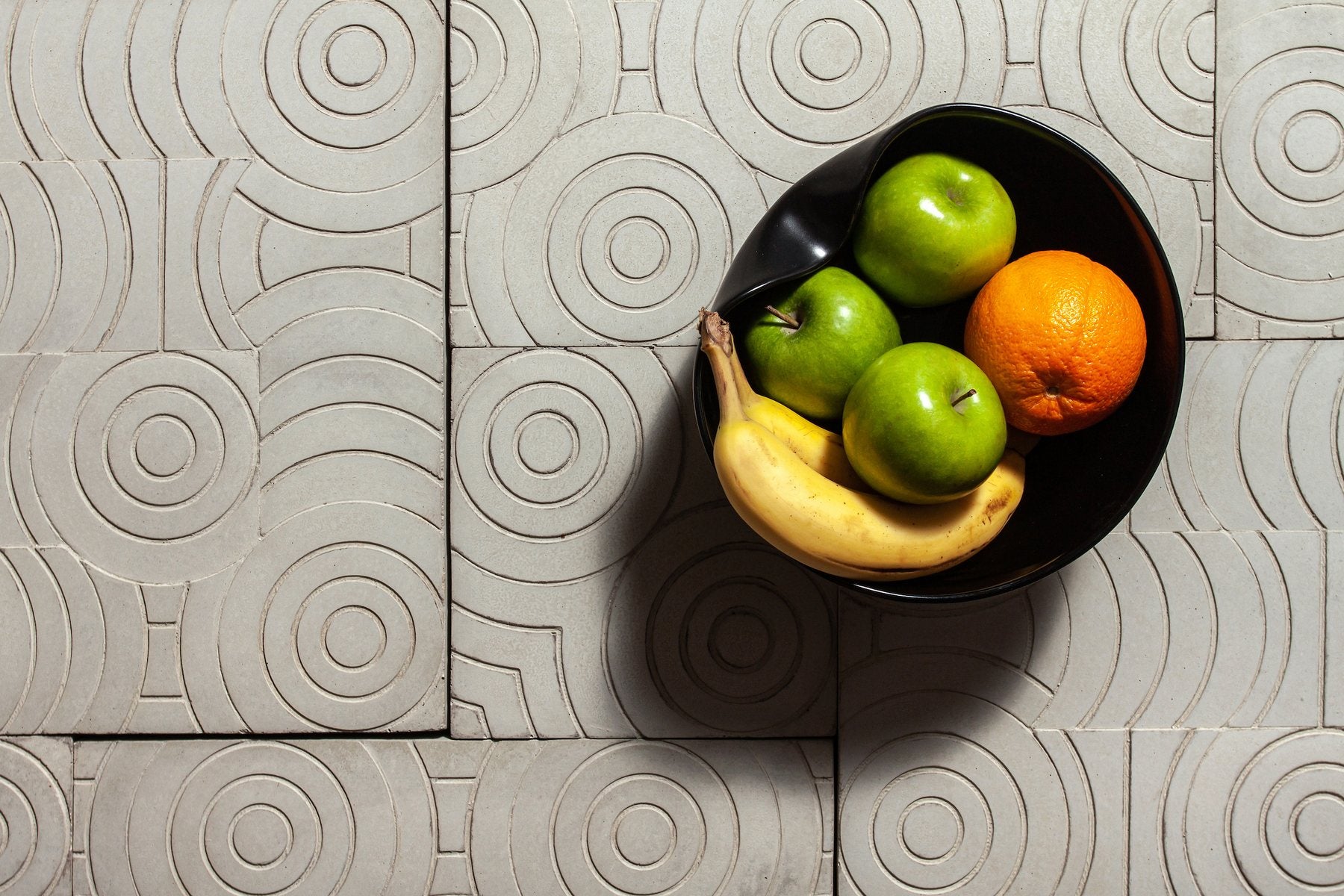

  • Echo Series, Early Gray

Color and finish

Solid color, one finish

All four families are made in solid concrete colors, and all four are made in a single finish.

That is the one thing this collection does not ask you to choose. The pattern is the decision. Everything else about the surface is settled before it is cast.

Standard, the form finish

The face the mould gives. It varies from item to item and does not need to be specified. Some items may feature rough or textured surfaces already, while others may have a smooth, flat surface.

The concrete palette

These are the solid concrete colors these four families are made in. Order the ones you are considering and hold them against the wall they will sit on.

The material

Cast by hand, pattern and all

The relief comes out of the mould. It is not worked into the face afterwards, which is why the finish is not a choice.

  • Hand Cast

    Cast by hand in our Gardena facility from durable, fiber reinforced concrete, one piece at a time. The face varies across a run.

  • Color Through the Body

    Color is cast through the body, not applied to the face. A cut edge reads the same as the surface.

  • Locally Sourced

    Made in Southern California with abundant and renewable locally sourced materials.

  • Custom Work

    Custom colors, custom shapes and custom color matches are developed on request. We run a sample before any production commitment.

Applications

  • Walls
  • Floors
  • Indoor
  • Outdoor

Floors applies to the Echo Series only. The other three families are for walls.

Material truth

A wall that holds the light

Every family here is a modelled or an engraved face, and the reason to specify any of them over a flat tile is what happens across that face as the light moves. Roman 3D Impressions is a Roman product. Floways, M3LD and the Echo Series stand on their own.

Rustic Elegance is not a marketing phrase. It is a material truth. Far from perfect, and that is the whole point.
